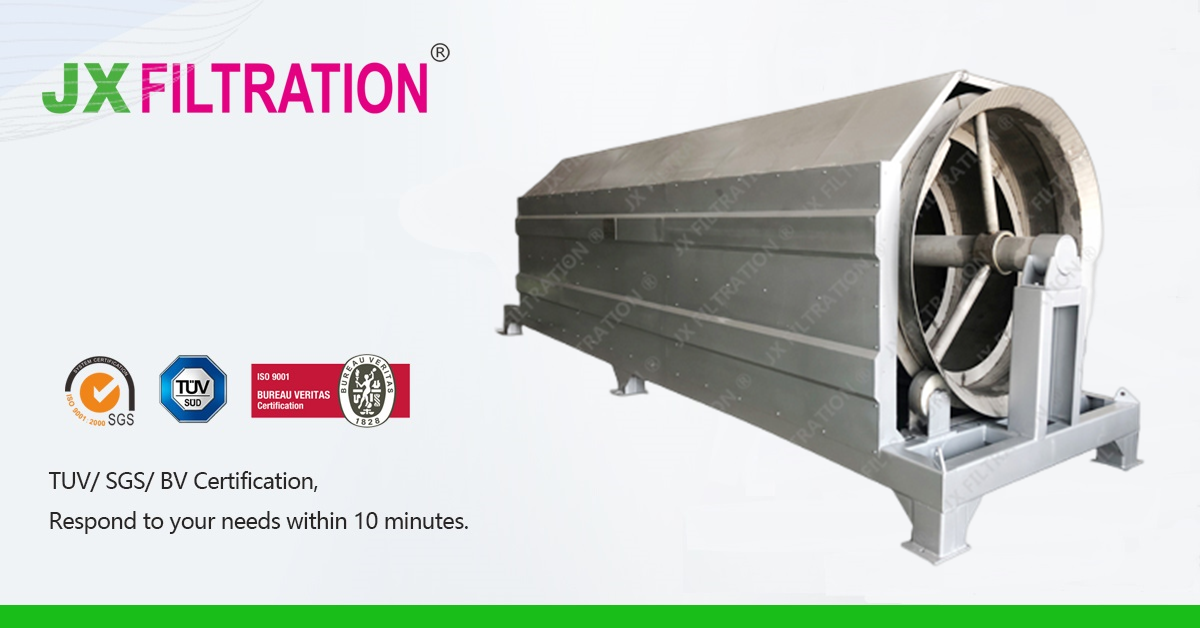

What Are the Key Features of JX Filtration Externally Fed Rotary Drum Screen?
The JX Filtration Externally Fed Rotary Drum Screen is a robust solid-liquid separation system designed for municipal and industrial wastewater treatment. Its external feed configuration allows effective capture of floating solids, making it particularly suitable for challenging applications such as papermill and wood factory wastewater.
Specifications & Capacity
The largest unit produced measures Dia. 2200 mm x Length 8500 mm, delivering a treatment capacity of up to 6,000 m³/h. Slot openings range from 10 microns to 10,000 microns, enabling the machine to handle both coarse screening and fine polishing when needed.
Applications
This drum filter is especially suitable for removing floating matters from liquid streams. It performs exceptionally well in papermaking wastewater and wood factory wastewater, where light solids such as fibers, wood particles, bark fragments, and other buoyant debris are present. It can also be used in municipal plants for removal of floating litter and scum.
Filter Element Options
JX Filtration offers three types of filter media, each tailored to specific slot size, flow rate, and service life requirements.
Wedge Wire Screen
Suitable for 20–1500 micron slots. Advantages: high permeability, longest service life, and no need to change the screen. Ideal for continuous, maintenance-free operation.
Perforated Mesh Screen
Suitable for slot sizes above 1 mm (1000 microns). Features a 99% interception rate for coarse solids but has lower permeability. It can be used for a long time without frequent replacement.
Woven Mesh Screen
Suitable for 10–50 micron slots, with a treatment capacity below 100 m³/h. Provides fine filtration but requires screen replacement every 1–2 years.
Conclusion
With a maximum capacity of 6,000 m³/h and three interchangeable filter media, the JX externally fed rotary drum filter offers flexible, reliable solid-liquid separation for demanding wastewater applications. Choose wedge wire for longevity, perforated mesh for high capture efficiency, or woven mesh for fine polishing. For floating solids in paper and wood industry waste – this is your ideal solution.
