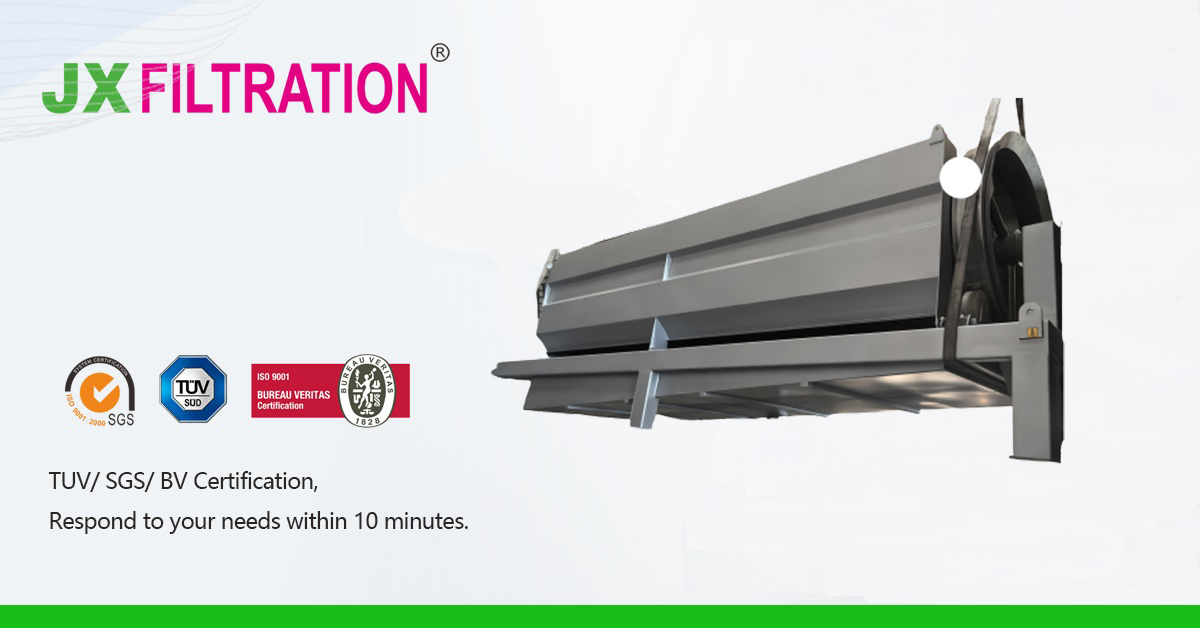

What Are the Key Features of JX Filtration Internally Fed Rotary Drum Screen?

The JX Filtration Internally Fed Rotary Drum Screen is a high-performance solid-liquid separation system designed for municipal and industrial wastewater treatment. Its internally fed configuration ensures efficient solids capture with low energy consumption.

Specifications & Capacity

The largest unit produced measures Dia. 2200 mm x Length 8500 mm, delivering a treatment capacity of up to 6,000 m³/h. Slot openings range from 10 microns to 10,000 microns, making the screen suitable for both fine polishing and coarse screening.

Applications

This drum screen is widely used to separate settleable solids from liquid in municipal and industrial wastewater treatment plants. It effectively removes small particulate matter, fallout, and floating materials.

Filter Element Options

JX Filtration offers three types of filter media, each tailored to specific slot size, flow rate, and service life requirements.

• Wedge Wire Screen
  Suitable for 20–1500 micron slots. Advantages: high permeability, longest service life, and no need to change the screen. Ideal for continuous, maintenance-free operation.

• Perforated Mesh Screen
  Suitable for slot sizes above 1 mm (1000 microns). Features a 99% interception rate for coarse solids but has low permeability. It can be used for a long time without frequent replacement.

• Woven Mesh Screen
  Suitable for 10–50 micron slots, with a treatment capacity below 100 m³/h. Provides fine filtration but requires screen replacement every 1–2 years.

Conclusion

With a maximum capacity of 6000 m³/h and three interchangeable filter media, the JX internally fed rotary drum screen offers flexible, reliable solid-liquid separation for demanding wastewater applications. Choose wedge wire for longevity, perforated mesh for high capture efficiency, or woven mesh for fine polishing.
